Micro Nano Fine Oxygen Air Aeration Plate Disc Diffuser for Wastewater Treatment Fish Farming

Basic Info.

Model NO.	215/ 260 / 300 mm
Certificate	CE
Application	Sewage Aeration Fish Pond
Connector	3/4 NPT
Service Life	More Than 5 Year
Diameter	215/ 260 / 300mm
Material	EPDM/Silicon /PTFE Membrane
Color	White
Transport Package	Packed in Cartons
Specification	215/ 260 / 300mm
Trademark	manvac
Origin	China
HS Code	8413910000
Production Capacity	50000PCS/Month

Product Description

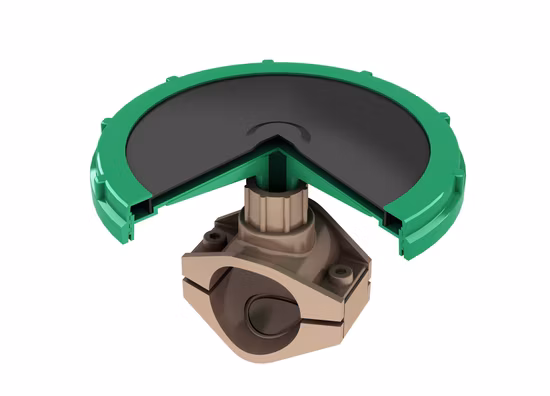

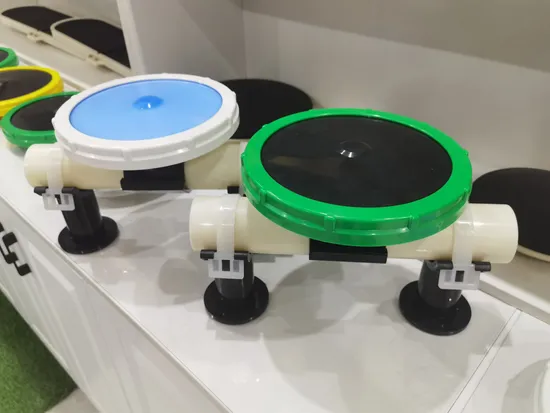

Elegant Design Ponds EPDM Membrane 215mm Aeration Disc Diffuser High oxygen Aerator Membrane Fine bubble Disc Diffuser features a unique split pattern and slit shapes,which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency.A much highly effective and integrated check valve enables the aeration zones to be easily shut downfor air-on/air-off applications.

Model	215mm	260mm	300mm
Size	8 inch	9 inch	12 inch
Bubble Type	Fine bubble	Fine bubble	Fine bubble
MOC	EPDM/Silicon /PTFE membrane	EPDM/Silicon /PTFE membrane	EPDM/Silicon /PTFE membrane
	Strengthened PP+GF(glass fiber) carrier plate	Strengthened PP+GF(glass fiber) carrier plate	Strengthened PP+GF(glass fiber) carrier plate
Connector	3/4 NPT	3/4 NPT	3/4 NPT
Bubble Size	1-2mm	1-2mm	1-2mm
Flow Range	1-6m³/h	1-8m³/h	1-12m3/h
Slit Quantity	5000	8900	10000
Service Area	0.2-0.64m²	0.25-1.0m²	0.4-1.5m2
Service Life	>5 year	>5 year	>5 year
